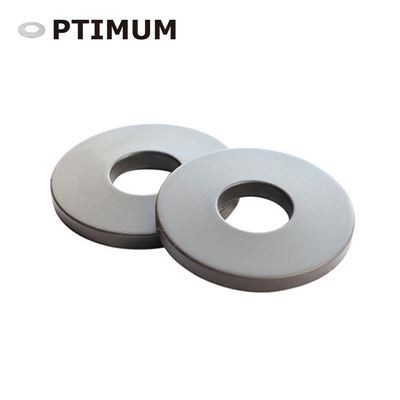

H13 Flange Bolting <br>Belleville Washer

H13 Flange Bolting
Belleville Washer

Name: China Customized H13 Flange Bolting Belleville Washer Manufacturers Suppliers Factory - Optimum
Brand: Optimum
SKU: 290754615

Bolting Size 1/4” to 4”

Custom Size & Inch Size Available

Send Inquiry

product-1600-400

H13 is the most popular and versatile hot-work tool steel, known for heat resistance, toughness, high temperature strength as well as good wear resistance.

It can be used for temperature up to about 500 °C (about 1000 °F).

H13
Chemical Composition
Carbon	Molybdenum	Vanadium	Chromium	Silicon	Manganese	Phosphorus	Sulfonium
0.37-0.45%	1.10-1.75%	0.80-1.20%	4.75-5.50%	0.80-1.25%	0.20-0.60%	<0.03%	<0.03%

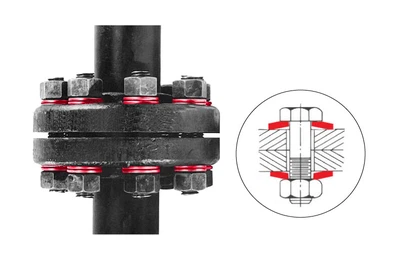

Optimum Flange Bolting Belleville Washers will maintain adequate seal pressure and provide increased tension when the bolts creep and stretched by differential expansion between flange and the bolts.

Using Optimum Flange Bolting Belleville Washers to avoid bolt stretch, low gasket pressure and flange leakage during high temperature and low temperature flange bolting.
Using Optimum Flange Bolting Belleville Washers to absorb vibration shock caused by mechanical vibration, which result in bolt and gasket deformation, lower gasket seal pressure and flange leakage.
Using Optimum Flange Bolting Belleville Washers to provide additional tension to prevent leakage caused by bolt creep, which result in insufficient gasket load and flange leakage.

Optimum Engineering department can assist in designing the proper dimensions for your application. For additional information, dimension table and catalogue, please contact 7/24 service at Email susie@optimum-spring.com.
